CM410 GPS/BD MODEM

Industrialgrade MODEMCentimeter level positioningSupport GPS+BD
Caimore Industrial GPS MODEM is a GPS positioning device based on the Global Satellite Positioning System. The equipment adopts an industrial-grade GPS wireless module and supports RS232 output or RS485 output.
Sample Now

Product Features

Xiamen Caimao industrial GRADE GPS MODEM, model CM410, is a basic GPS positioning equipment

The equipment adopts industrial grade GPS wireless module












Metal shell, shielding electromagnetic interference, system protection class IP30;  Lightning protection design of antenna belt;

System ultra low temperature and ultra high temperature design  Especially suitable for use in harsh industrial environment




Serial port RS232 indicator Antenna port UIM card port Voice port Power port


Serial port RS232 indicator Antenna port UIM card port Voice port Power port



Full netcom /4G/3G/2G/GPRS/ NB-iot full line compatibility.



In the production process of technical requirements and quality level of strict control, efficiency and quality first









Model No.

Network

Item

Interface

Dimension

CM410

2G

GPRS MODEM

RS232

81*55*20 mm





Technical Parameter

CM410 GPS/BD MODEM

Serial Port

DB9, support 1 channel RS232 serial port or 1 chaneel RS485 interface (support RS422/TTL)

Data bits: 7, 8 bits

Stop bit: 0, 1 bit

Parity bit: no parity, odd parity, even parity

Serial port speed: 4800bps ~ 115200bps. Default rate: 9600bps

Flow control bit: no flow control

Indicator Light

Online / ACT / Power

Antenna Interface

Standard SMA female interface, 50 ohm; optional 3M/5M/10M/15M antenna extension cable, meet the different needs of customers

SIM/UIM

1.8V/3V/5V standard push-rod SIM card slot, built-in 15KV ESD protection

Power Interface

Standard 3-pin locomotive power socket

Powered By

Item

Description

Recommended Power Supply

DC9V/500mA

Operating Voltage

Wide voltage design, DC 5V to DC32V power supply can directly supply power to the device; and built-in power reverse protection and overvoltage and overcurrent protection

Power Comsumption

Item

Description

Average Communication Current

30mA@+9VDC;

Standby average curren

<15mA@+9VDC

Physical Characterisitics

Item

Description

Shell

Metal shell: anti-radiation, anti-interference; shell and system security isolation, lightning protection design; meet the power requirements of safety regulations; protection rating IP30; particularly suitable for harsh industrial control environments.

Dimension

81*55*20 mm  (not including the antenna and the fixed parts)

Weight

0.41kg

Other Parameters

Item

Description

Operating Temperature

(-25 ºC ~+65ºC)

Storage Temperature

(-40~+85ºC)

Relative Humidity

95%(No condensation)

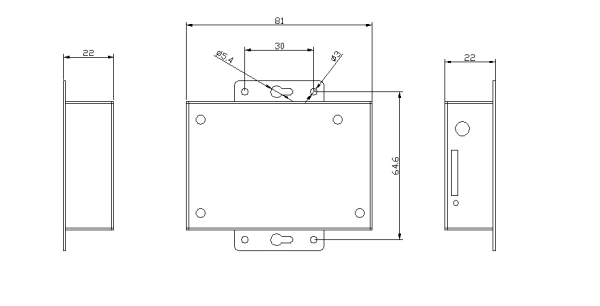

Product Size


Selection Guide


Model NO.

CM410

Standards and Frequency Bands

Support UMTS/HSDPA/WCDMA 850/1900/2100MHz

Dual frequency EGSM 850/900/1800/1900MHz

Support GPRS/EDGE CLASS 12

The theory of bandwidth

HSDPA/HSUPA:Downlink up to 7.2Mbps,Uplink up to 5.76Mbps

WCDMA:Downlink/Uplink up to 384Kbps

Transmit Power

<24dBm

Receiver Sensitivity

<-109dBm

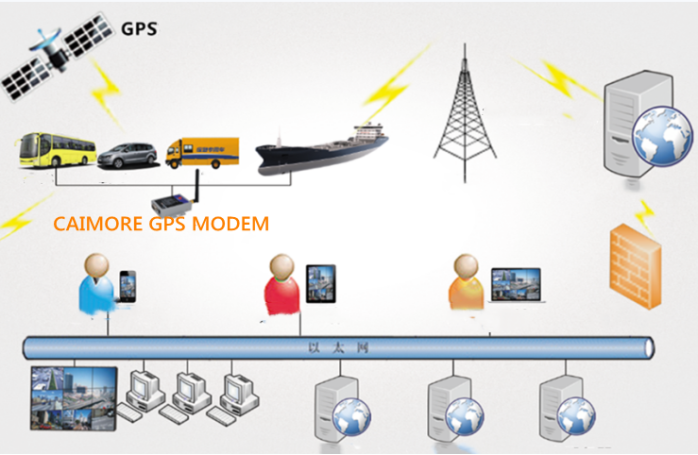

Application Scheme

GPS/Beidou Positioning Device Application

Transportation industry

² Taxi positioning

² Official vehicles positioning

² Logistics vehicles positioning

²  Company vehicles positioning etc industry

² Ship positioning

² All kinds of Application Scenario that need positioning
