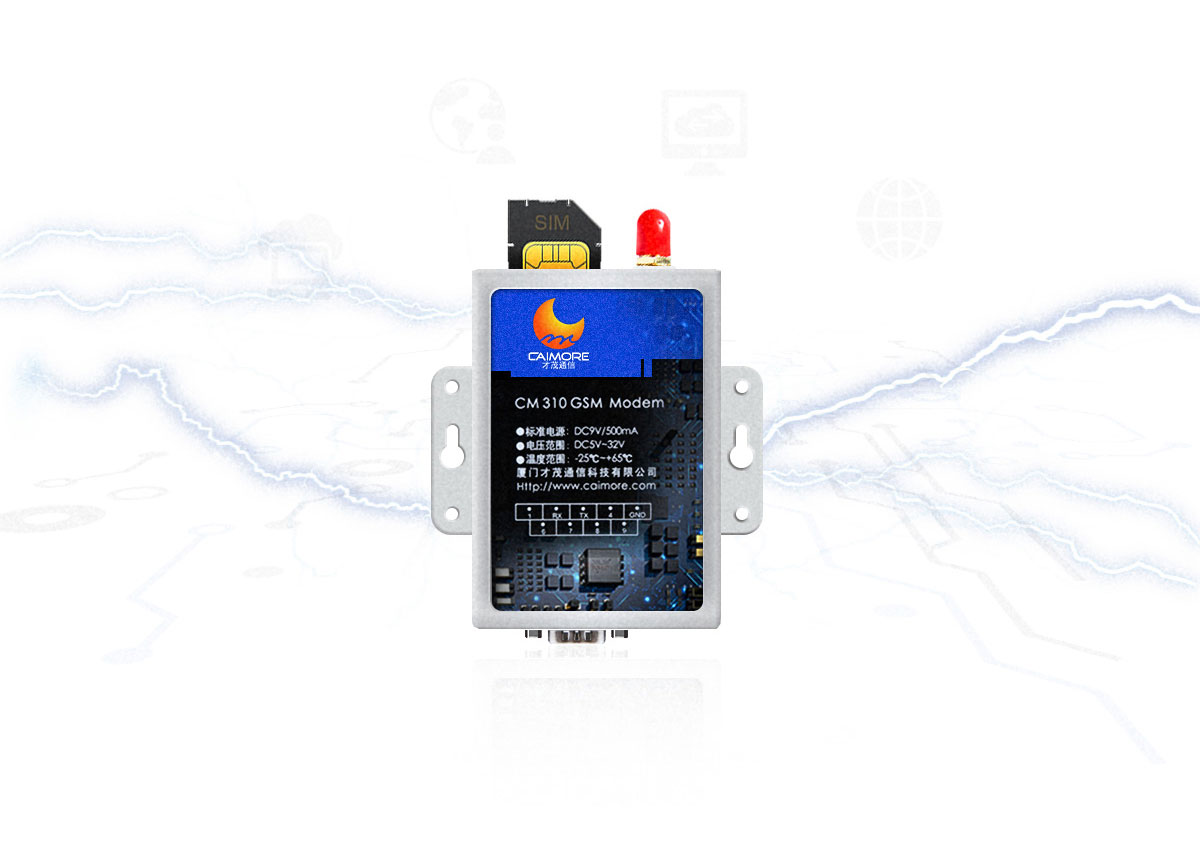

CM310 MODEM
Product Features
Stable transmission
Adopt industrial-grade wireless module

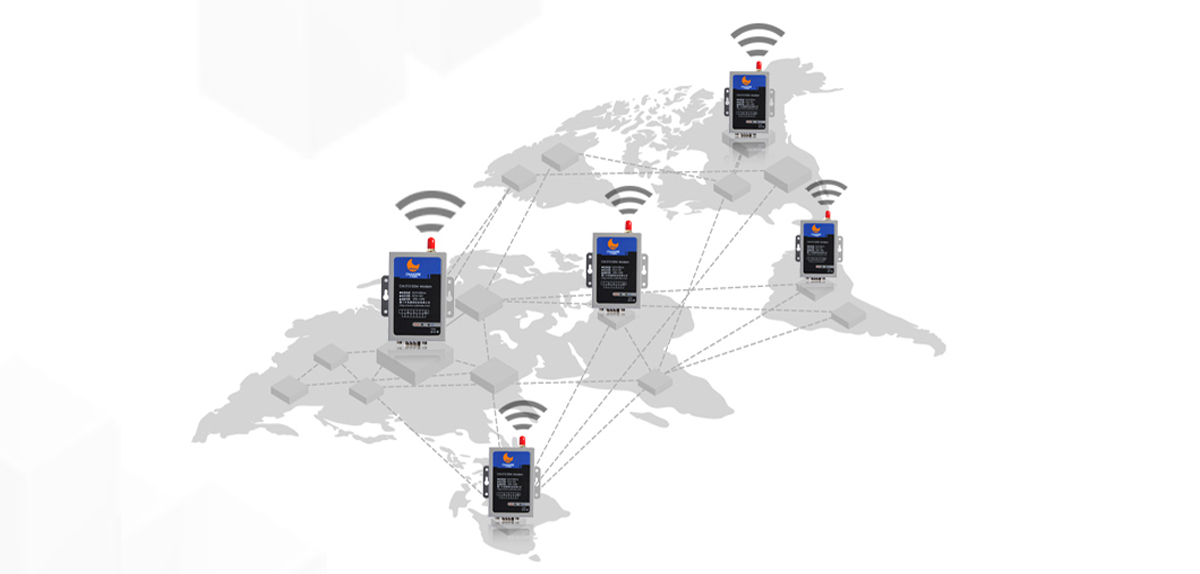

Convenience and manpower saving

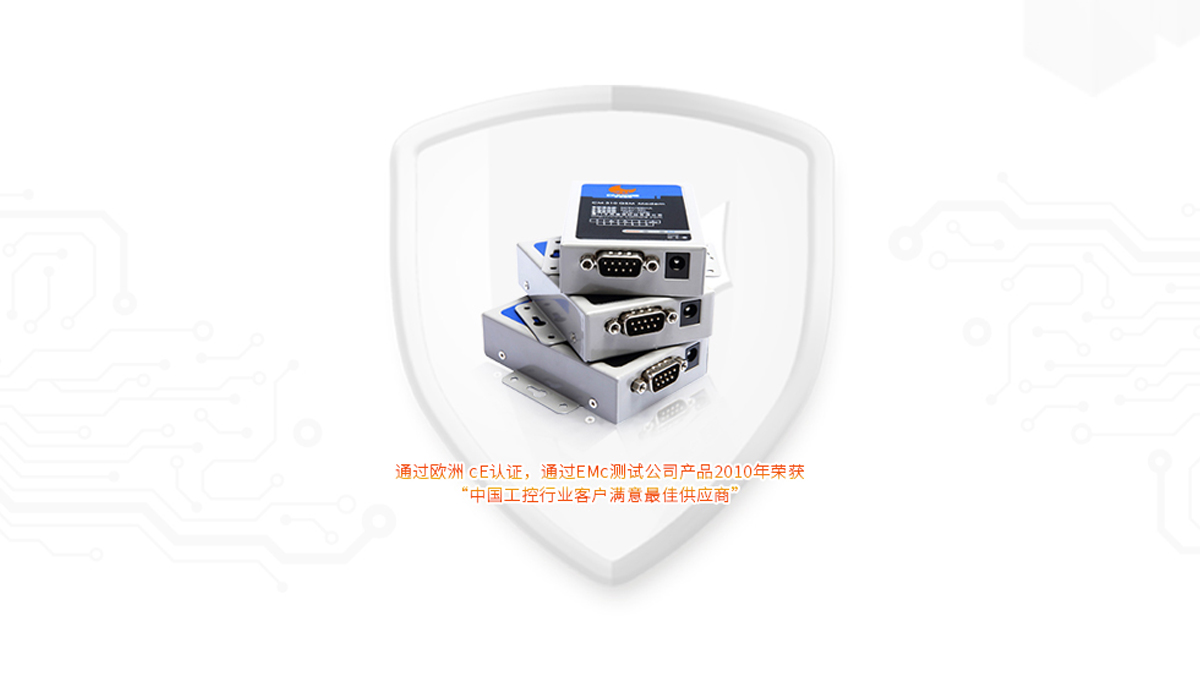

Excellent EMC performance
Passed the electric shock test of 3000V, especially suitable for use in harsh industrial environments.
The system is stable and reliable.

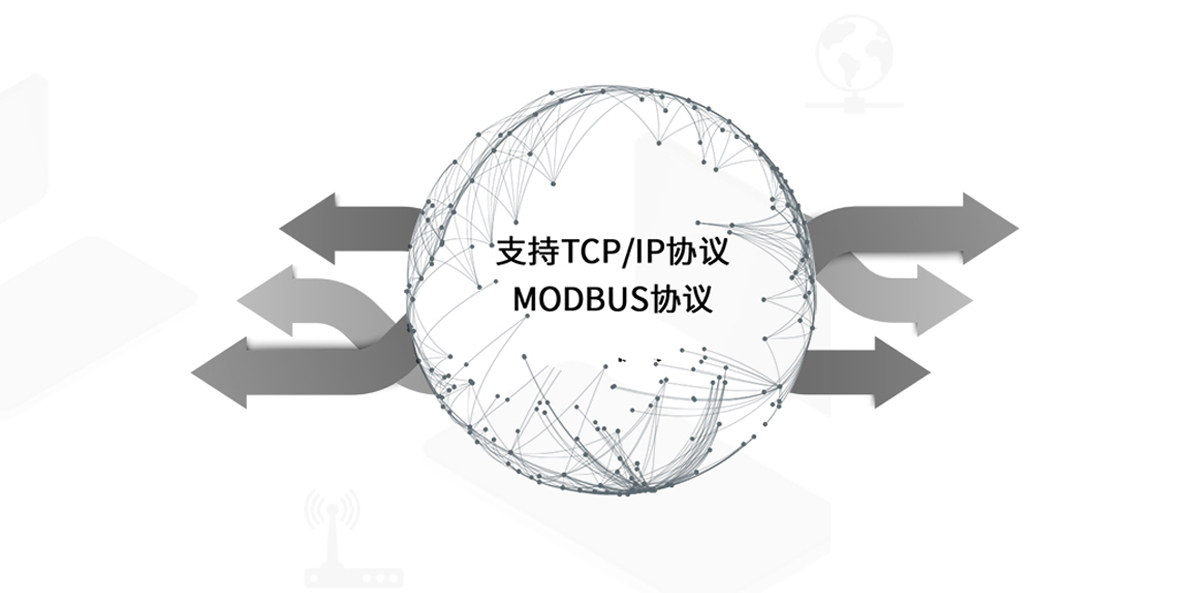

Complete TCP/IP protocol stack
Load the perfect TCP/IP protocol stack, adopt the perfect TcP/IP protocol stack
Excellentcommunication performance, Low disconnection probability
Industrial wide voltage power supply design
Range is DC6V~DC32V, with built-in power reverse protection and overvoltage and overcurrent protection
SIM/UIM card interface built-in 15KVESD protection

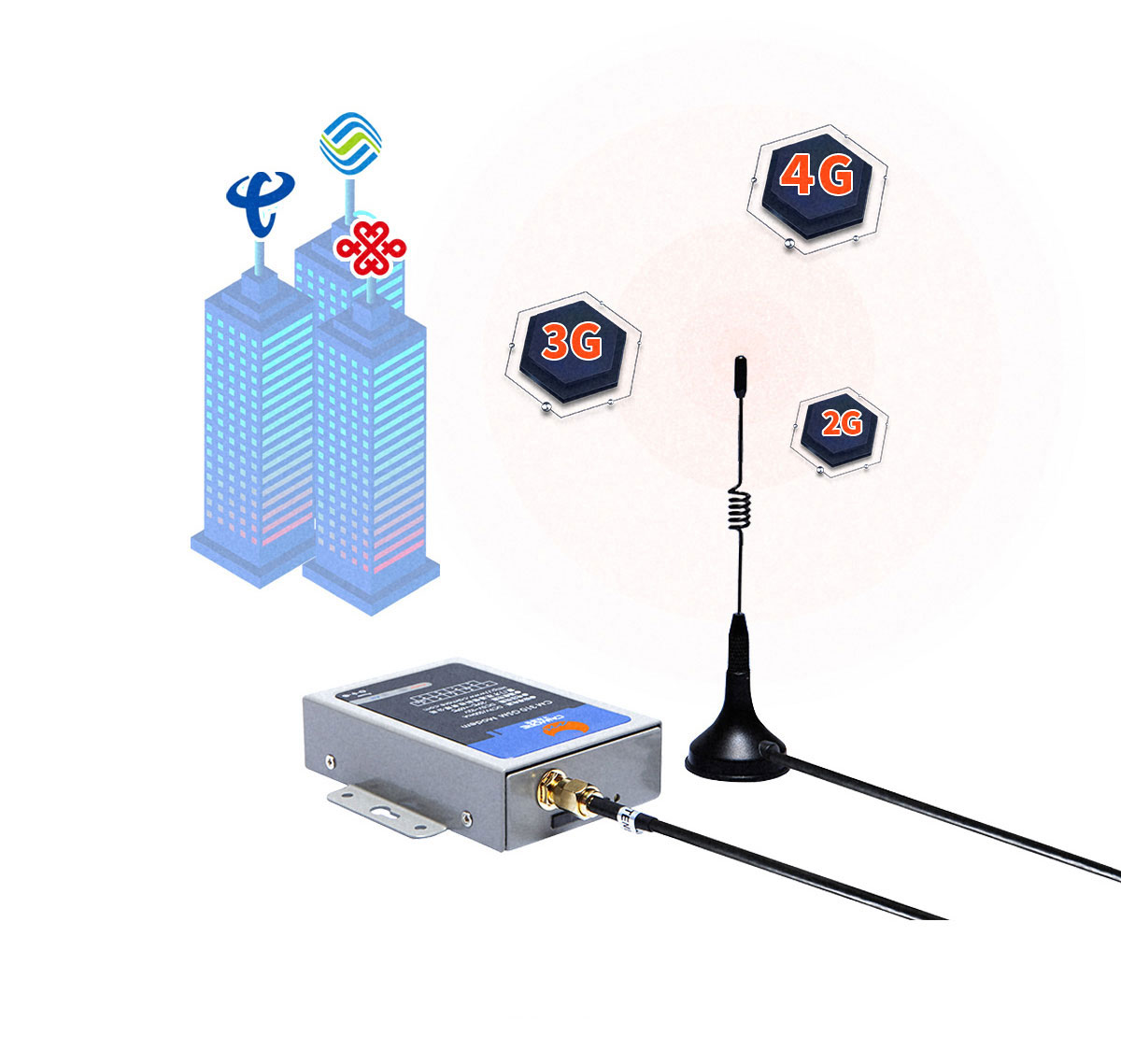

Perfect network support
Provide 2G network (GSM network), 2.5G network (GPRS network), 2.75G network (EDGE network), 3G network
(WCDMA network, EVDO network, TD-SCDMA network), 4G network (TDD network, FDD network), full network product support.

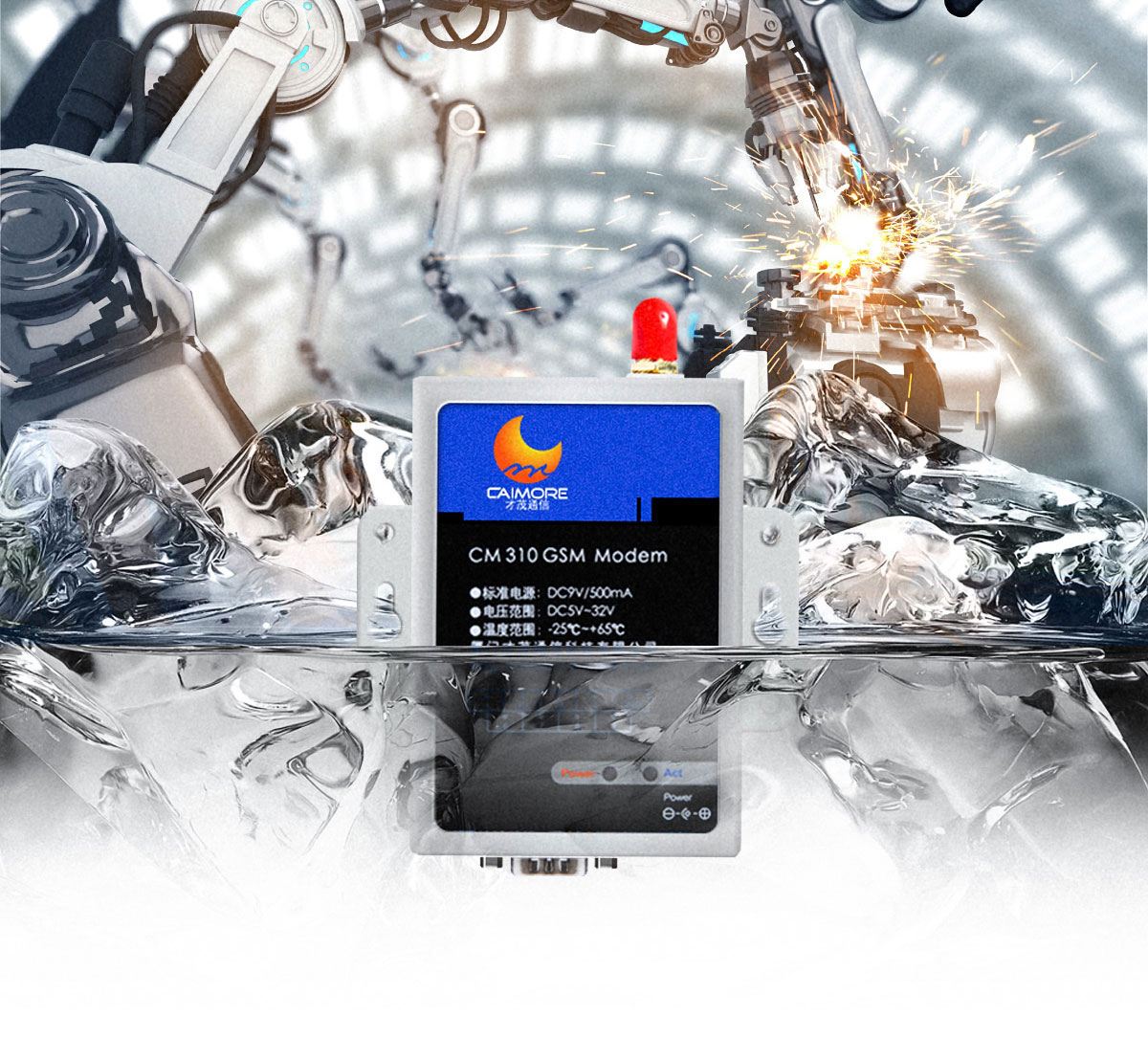

Strong adaptability to the environment
Designed for ultra-low temperature and ultra-high temperature,
Especially suitable for use in harsh industrial environments
Application
Widely used in factory industry, power industry, smart municipal administration, smart transportation
Technical Parameter
CM310 MODEM | |
Serial Port | 1 channel RS232 serial port Data bits: 7, 8 bits Stop bits: 1, 2 bits Parity: no parity, odd parity, even parity, SPACE and MARK parity Serial port rate: 110bps ~ 230400bps Flow control bit: no flow control, RTS/CTS hard flow control or XON/XOFF soft flow control |
Indicator Light | Online / ACT / Power |
Antenna Interface | Standard SMA female interface, 50 ohm; optional 3M/5M/10M/15M antenna extension cable, meet the different needs of customers |
SIM/UIM | 1.8V/3V/5V standard push-rod SIM card slot, built-in 15KV ESD protection |
Power Interface | Standard 3-pin locomotive power socket |
Powered By | |
Item | Description |
Recommended Power Supply | DC9V/500mA |
Operating Voltage | Wide voltage design, DC 5V to DC32V power supply can directly supply power to the device; and built-in power reverse protection and overvoltage and overcurrent protection |
Power Comsumption | |
Item | Description |
Average Communication Current | Average communication current : 90mA @ +9 VDC; instantaneous peak current: 1.0A @ +9 VDC |
Standby average curren | 15mA@+9VDC |
Standby average curren | <15mA@+9VDC |
Physical Characterisitics | |
Item | Description |
Shell | Metal shell: anti-radiation, anti-interference; shell and system security isolation, lightning protection design; meet the power requirements of safety regulations; protection rating IP41; particularly suitable for harsh industrial control environments. |
Dimension | 81*55*20 mm (not including the antenna and the fixed parts) |
Weight | 0.41kg |
Other Parameters | |
Item | Description |
Operating Temperature | （-25 ºC ~+65ºC） |
Storage Temperature | （-40~+85ºC） |
Relative Humidity | 95%(No condensation) |

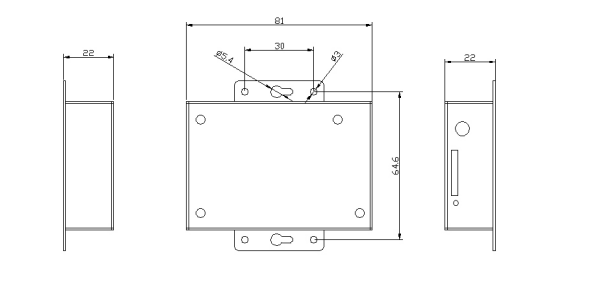

Product Size
Selection Guide
Model NO. | CM310 |
Standards and Frequency Bands | SupportUMTS/HSDPA/WCDMA 850/1900/2100MHz Dual frequency EGSM 850/900/1800/1900MHz Support GPRS/EDGE CLASS 12 |
The theory of bandwidth | Theoretical bandwidth: 171.2Kb/s; actual bandwidth: 100Kbits>X>20Kbits/s |
Transmit Power | <24dBm |
Receiver Sensitivity | <-109dBm |
Application Scheme
