CM510-13X
Product Features
Model No. | Network | Item | Interface | Dimension |
CM510-13F | 2G/3G/4G | DTU | Support RS232/485/TTTL | 100x62x24 mm |
CM510-13T | GSM/4G | DTU | Support RS232/485/TTTL | 100x62x24 mm |
Technical Parameter
CM510-13X | |
Serial Port | Data bit: 8 bits Stop bits: 1, 1.5, 2 Parity bit: no parity, odd parity, even parity Serial port rate: 300bps ~ 115200bps Flow control bit: no flow control Supports RS232/485/RS422/TTTL |
Indicator Light | Online / ACT / Power |
Antenna Interface | Standard SMA female interface, 50 ohm; optional 3M/5M/10M/15M antenna extension cable, meet the different needs of customers |
SIM/UIM | 1.8V/3V/5V standard push-rod SIM card slot, built-in 15KV ESD protection |
Power Interface | Standard 3-pin locomotive power socket |
Powered By | |
Item | Description |
Recommended Power Supply | DC9V/1330mA |
Operating Voltage | Wide voltage design, DC 7V to DC32V power supply can directly supply power to the device; and built-in power reverse protection and overvoltage and overcurrent protection |
Power Comsumption | |
Item | Description |
Average Communication Current | 60mA@+12VDC |
Instantaneous Peak Current: | 25mA@+12VDC |
Standby Average Current | 25mA@+12VDC |
Physical Characterisitics | |
Item | Description |
Shell | Metal shell: anti-radiation, anti-interference; shell and system security isolation, lightning protection design; meet the power requirements of safety regulations; protection rating IP41; particularly suitable for harsh industrial control environments. |
Current | 100x62x24 mm(not including the antenna and the fixed parts) |
Weight | 0.41kg |
Other Parameters | |
Item | Description |
Operating Temperature | （-25 ºC ~+65ºC） |
Storage Temperature | （-40~+85ºC） |
Relative Humidity | 95%(No condensation) |

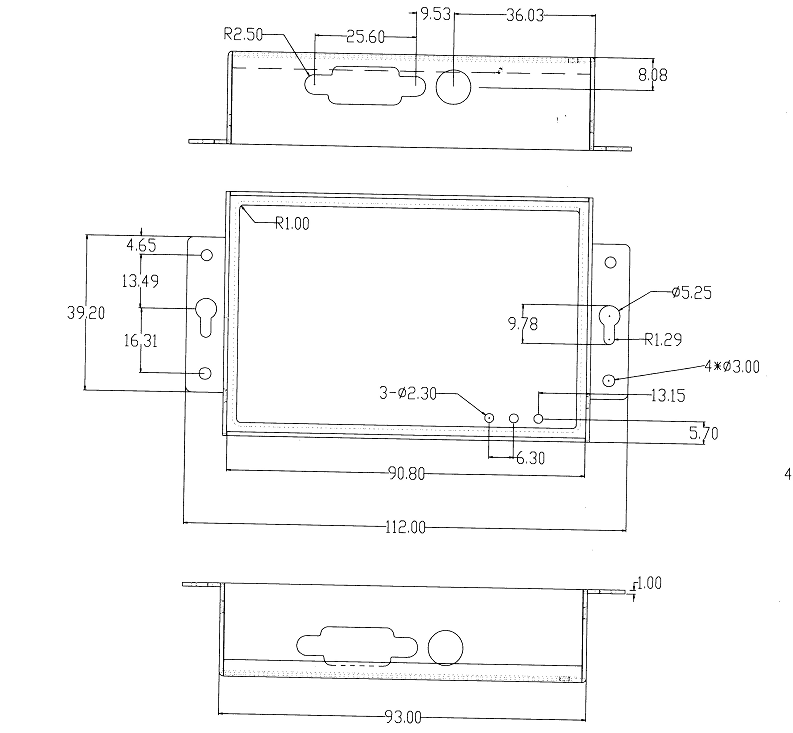

Product Size
Selection Guide
Model NO. | CM510-71F | CM510-71T |
Standards and Frequency Bands | LTE FDD:B1/B3 | LTE FDD:B1/B3 LTE TDD:B39/B40/B41 TD-SCDMA:B34/B39（13T not support） WCDMA:B1（13T not support） CDMA2000 1X/EVDO:B5（13T not support） GSM/GPRS/EDGE:B3/B8
|
he theory of bandwidth | TD-LTE supports the maximum downlink transmission rate: 100Mbps DL @20MHz BW; TD-LTE supports the maximum uplink transmission rate: 50Mbps UL @20MHz BW;
| Support the maximum uplink peak rate of 5Mbps, the maximum downlink peak rate of 10Mbps |
Transmit Power | <24dBm | <24dBm |
Receiver Sensitivity | <-109dBm | <-109dBm |
Application Scheme
1. Detection industry applications (pollution, meteorology, water pattern, water conservancy, earthquake, etc.)
2. Network management monitoring industry applications (gas pipe network, oil pipe network, heating network monitoring, water pipe network monitoring, etc.)
3. Oilfield monitoring, street light control, traffic control, vehicle guidance
4. Application cases in the power industry (power distribution monitoring, grid automation, automatic meter reading, grid dispatching)
