CM580-62F
Product Features
Super powerful quad-core Cortex-A17, frequency up to 1.8GHz

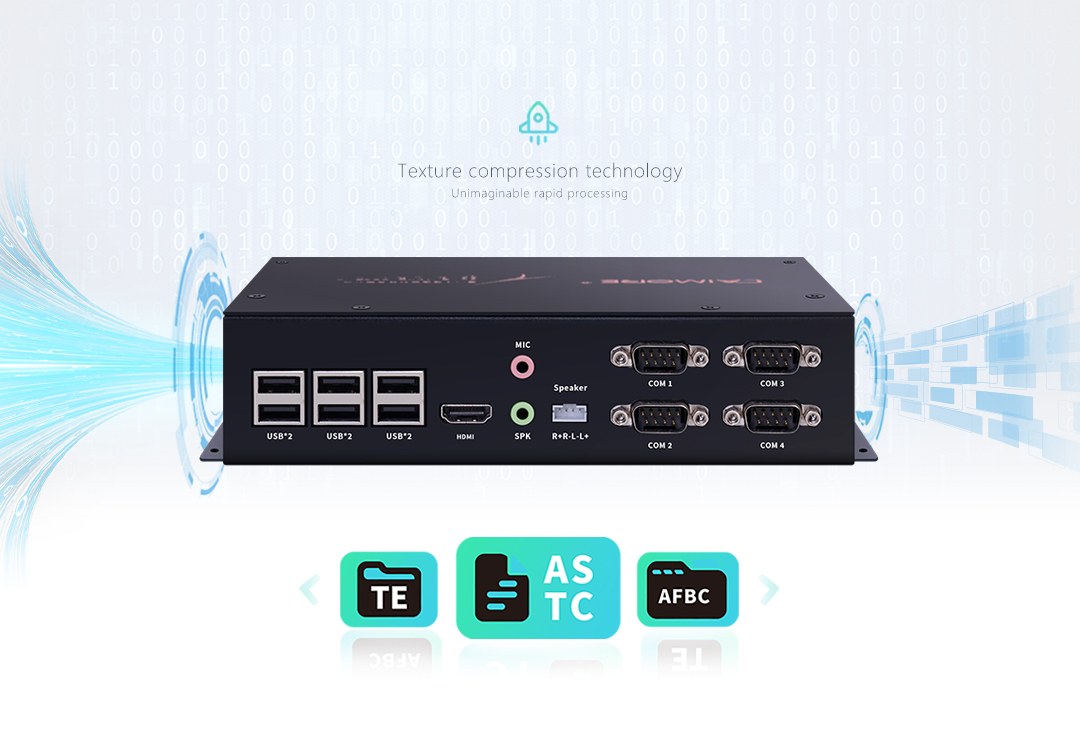

GPU adopts Mali-T764 GPU, which supports TE,
ASTC, AFBC memory compression technology

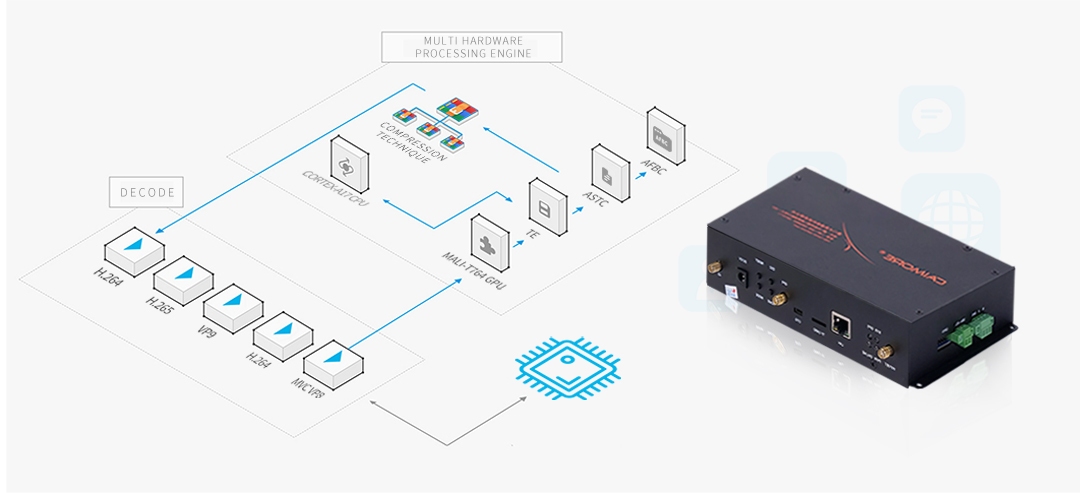

Built-in multiple high-performance hardware processing engines that support video decoding in multiple formats, such as: H.264/H.265/VP9 of 4K*2K@60fps, also support H.264/MVC/ VP8 of 1080P@30fps and high-quality JPEG codec and image pre- and post-processor
Technical Parameter
CM580-62F | |
Serial Port | 4-channel RS232,1 channel RS485 |
Indicator Light | Double-layer LED indicator(1 channel power indicator , 1 channel system status indicator , 1 channel 4G Online indicator) |
Antenna Interface | 1 channnel wifi antenna，1 channel 4G antenna |
SIM/UIM | 1 channel Micro SIM |
Power Interface | 12V DC, 4A, with lightning protection function, overvoltage and overcurrent protection, anti-reverse connection protection |
Powered By | |
Item | Description |
Recommended Power Supply | 4A |
Operating Voltage | 12V |
Power Comsumption | |
Item | Description |
Communcaition Current | |
Standby Current | |
Hibernation Current | |
Physical Characterisitics | |
Item | Description |
Shell | Metal shell |
Dimension | 195.2mm*125.3mm*45mm |
Weight | |
Other Parameters | |
Item | Description |
Operating Temperature | -20℃ ~ +70℃ |
Storage Temperature | -40 ºC ~+80ºC |
Relative Humidity | 95%(No condensation) |

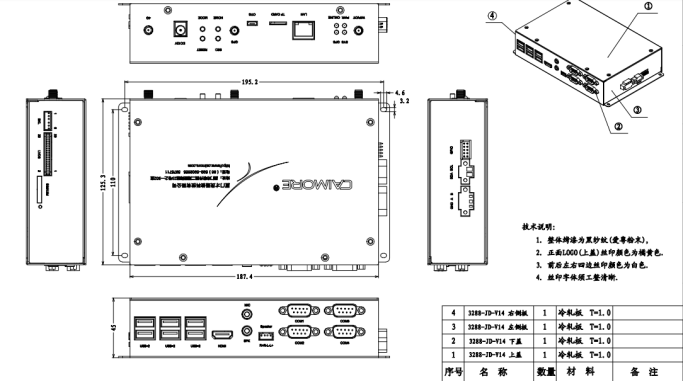

Product Size
Selection Guide
Model No. | Network | Item | Interface | Dimension |
CM580-62F | 4G LTE | Industrial PC | LVDS, HDMI (screen interface), GPIO interface, 232 interface, 485 interface, RJ45, Reset Key, Return Key, USB | 195.2mm*125.3mm*45mm |
Application Scheme
Industrial field control acquisition Financial POS machine, vehicle control terminal Intelligent terminal in unattended environment Security/surveillance/police and IoT fields Human-computer interaction,intelligent retail |
