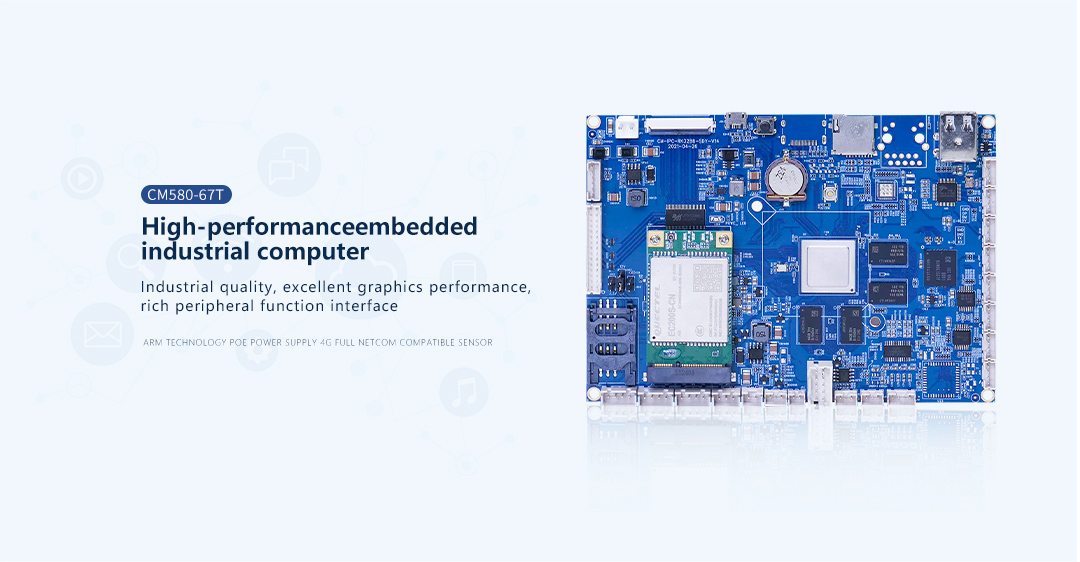

CM580-67T
Product Features
Super quad-core Cortex-A17, frequency up to 1.6GHz
Using Rockchip RK3288 series CPU ARM architecture processor combined with Android operating system
GPU uses Mali-T764 GPU, supports TE, ASTC, AFBC memory compression technology
Built-in multiple high-performance hardware processing engines, capable of supporting video decoding in multiple formats, such as: 4K*2K@60fps H.264/H.265/VP9Also supports 1080P@30fps H.264/MVC/VP8 and high-quality JPEG codec and image pre- and post-processor
Support 4K VP9 and 4K 10bits H265/H264 video decoding, up to 60fps
4K*2K@60fps H.264/H.265/VP9 also supports 1080P@30fps H.264/MVC/VP8 and high-quality JPEG codec and image pre- and post-processor

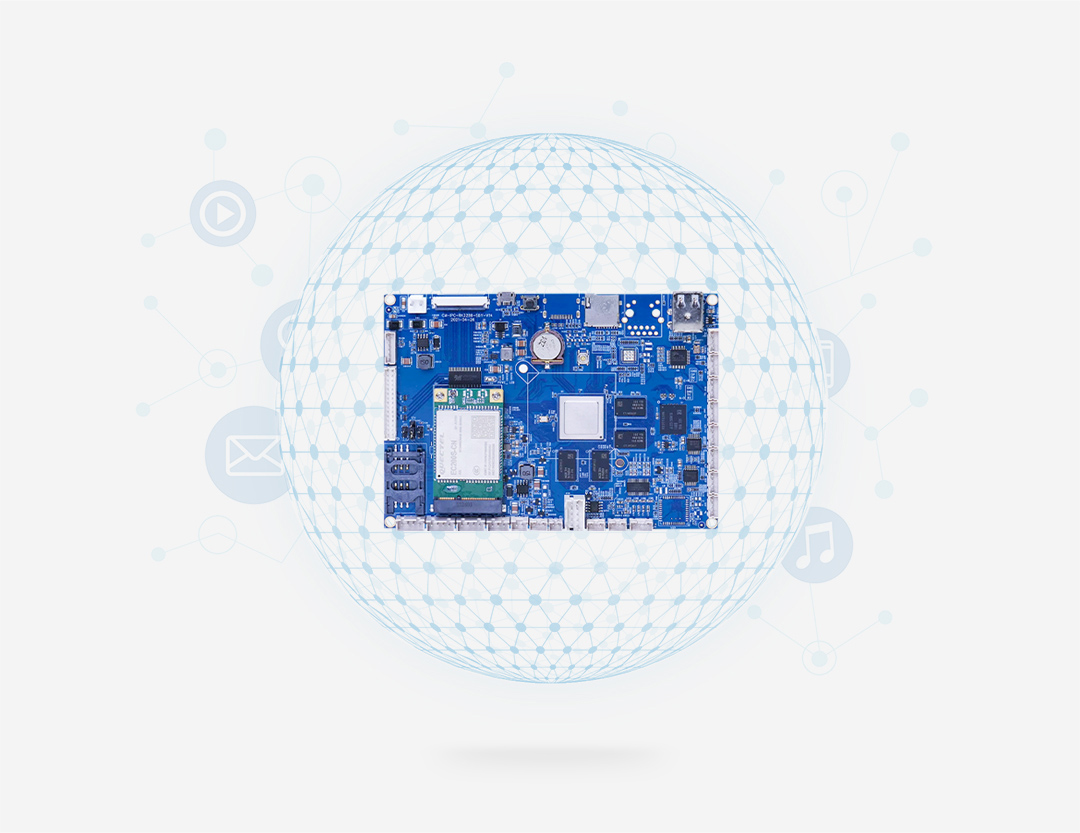

Support for network diversity
Can support a variety of networks (please go to the official for details)

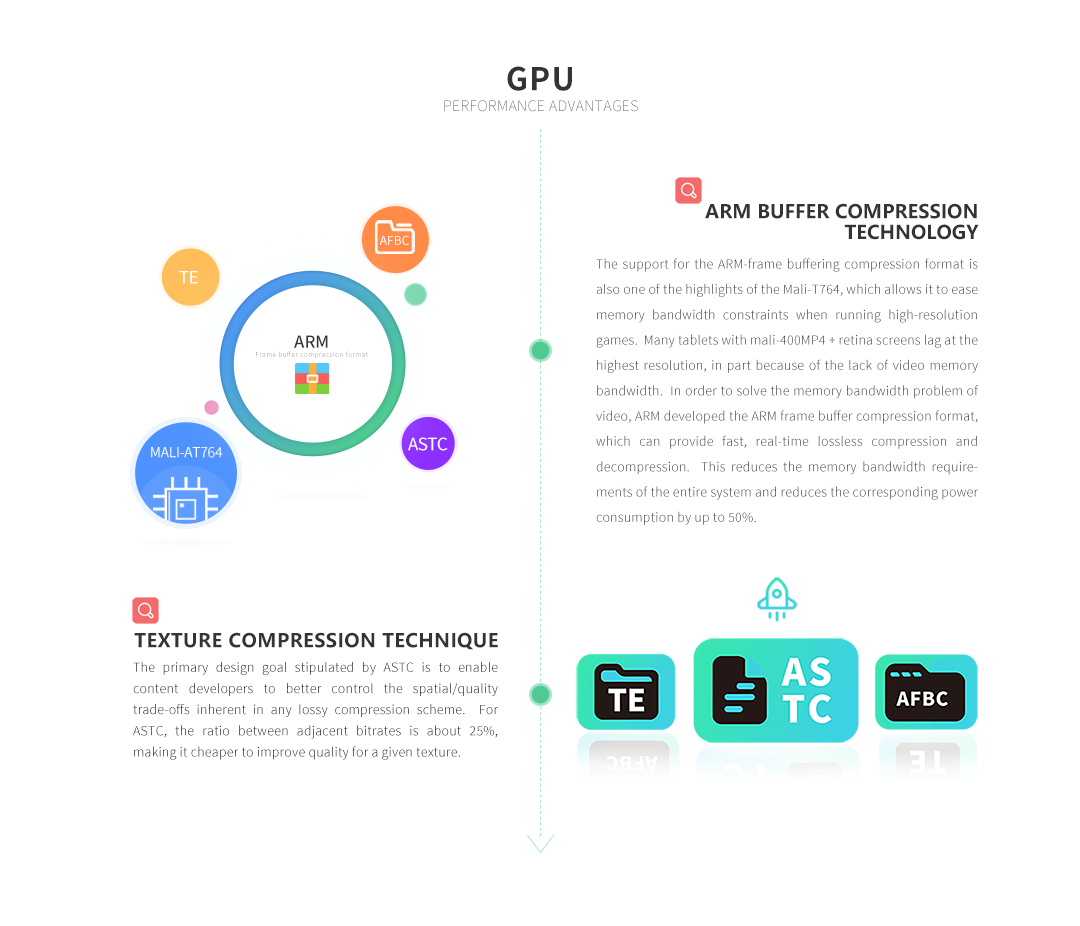

GPU performance advantages
Details

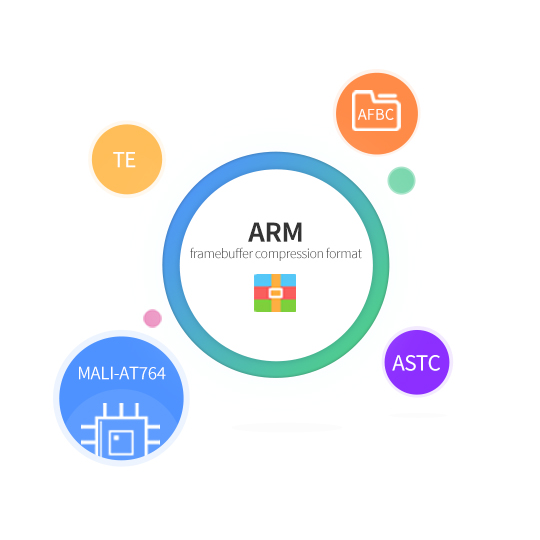

ARM frame buffer compression technology Support for ARM frame buffer compression format is also a highlight of Mali-T764, which allows it to relieve the pressure of insufficient memory bandwidth when running high-definition games. |
Many tablets with Mali-400MP4+ Retina screen will be very stuck in the highest resolution mode, which to a large extent is a manifestation of insufficient memory bandwidth. To address the memory bandwidth challenges video encounters, ARM developed the ARM framebuffer compression format, which provides fast, real-time lossless compression and decompression. |
| This reduces overall system memory bandwidth requirements and corresponding power consumption by as much as 50%. |
Technical Parameter
CM580-67T | |
Serial Port | 3-channel RS232, PH2.0x4P white socket 4-1 channel RS485,PH2.0x3Pwhite socket |
Indicator Light | N/A |
Antenna Interface | 1 channel 4G onboard antenna, 1 channel wifi antenna (reserved) |
SIM/UIM | N/A |
Power Interface | 1 channel vertical VH3.96mm 2P terminal socket, 12V DC, 4A.With lightning protection function, overvoltage and overcurrent protection, anti-reverse connection protection |
Powered By | |
Item | Description |
Recommended Power Supply | 4A |
Operating Voltage | 12V |
Power Comsumption | |
Item | Description |
Communcaition Current | |
Standby Current | |
Hibernation Current | |
Physical Characterisitics | |
Item | Description |
Shell | |
Dimension | |
Weight | |
Other Parameters | |
Item | Description |
Operating Temperature | -20℃ ~ +70℃ |
Storage Temperature | -20 ºC ~+70ºC |
Relative Humidity | 95% (No condensation) |
Product Size
Selection Guide
Model No. | Network | Item | Interface | Dimension |
CM580-67T | 4G LTE | Industrial PC | LVDS, HDMI (screen interface), 4.3''LCD RGB interface, electric control lock interface, RGB light control interface, infrared transmitter tube interface, infrared receiver tube interface, human sensor interface, GPIO interface, 232 interface, 485 interface, RJ45, Reset Key, USB | 146mm*105mm |
Application Scheme
Industrial field control acquisition
Financial POS machine, vehicle control terminal
Intelligent terminal in unattended environment
Security/surveillance/police and IoT fields
Human-computer interaction,intelligent retail
