CM580-59F
Product Features
Dual Core Processor
Based on the Big.Little architecture, a dual-core Cortex-A72 and quad-core Cortex-A53 combined architecture with independent NEON coprocessors
Integrated graphics quad core
The GPU adopts the quad-core ARM new generation high-end image processor Mali-T860, which integrates more bandwidth compression technologies: such as smart superposition, ASTC, local pixel storage, etc., and supports more graphics and computing interfaces

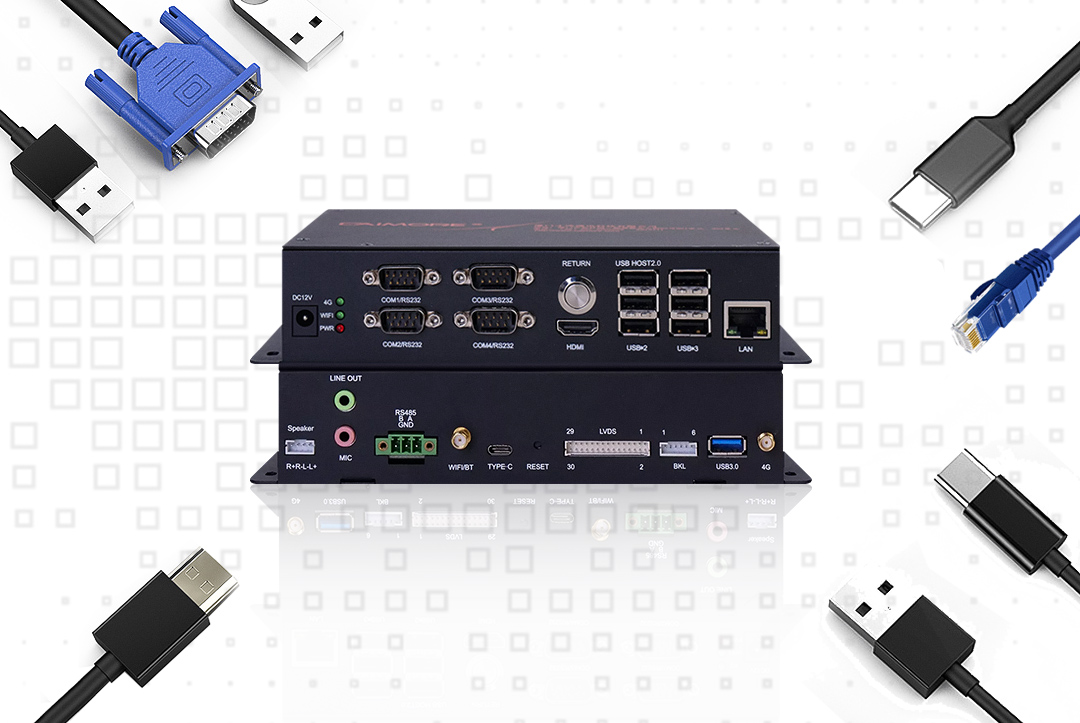

Excellent I/O expansion capabilities
UART, LVDS, audio, USB, TYPE-C, four channel Gigabit Ethernet, TF card, expansion PCIE hard disk, GPIO, I2C, SPI, I2S, HDMI, MIPI
Technical Parameter
CM580-59F | |
Serial Port | 1 channeldebug serial port, 4-channel RS232, 1 channel RS485 |
Indicator Light | 1 channel power indicator, 1 channel system status indicator, 1 channel 4G Online indicator |
Antenna Interface | 1-way onboard dual-band 5G/2.4G Wifi,with hotspot function,802.11 b/g/n,BT5.0 |
SIM/UIM | 2 channel standard push-rod SIM card slot, supporting dual cards and single waiting function |
Power Interface | DC 9V~28V wide voltage design, built-in power supply reverse protection and over-voltage over-current protection |
Powered By | |
Item | Description |
Recommended Power Supply | 4A |
Operating Voltage | 12V |
Physical Characterisitics | |
Item | Description |
Shell | metal shell |
Dimension | 200mm*127mm*42.2mm |
Other Parameters | |
Item | Description |
Operating Temperature | -20℃ ~ +70℃ |
Storage Temperature | -40ºC ~+80ºC |
Relative Humidity | 95% (No condensation) |
Product Size
Selection Guide
Model No. | Network | Item | Interface | Dimension |
CM580-59F | 4G LTE | Industrial PC | LVDS, HDMI(screen interface), GPIO interface, 232 interface, 485 interface, RJ45, Reset Key, Return Key,, USB | 200mm*127mm*42.2mm |
Application Scheme
Industrial field control acquisition
Financial POS machine, vehicle control terminal
Intelligent terminal in unattended environment
Security/surveillance/police and IoT fields
Human-computer interaction,intelligent retail
