CM510-11X
Product Features
Industrial grade CPU, industrial grade high performance cache data. Industrial wireless module, strong anti-interference and stable transmission. Real-time operating system function, upgrade UP quickly. PCB adopts the 20H and 3W principle to ensure the stability and reliability of the plate. Industrial power supply has built-in power reverse protection and over voltage and over current protection
Three layers of system protection, software protection, built-in watchdog, WDT protection. Serial PORT ESD protection,
The series of products have a rich communication protocol library built in, which is very suitable for industrial iot application scenarios such as data collection and remote transmission, remote maintenance and control of equipment, and analysis and conversion of various types of communication protocols for life cycle management of large equipment.
Model No. | Network | Item | Interface | Dimension |
CM510-11F | 2G/3G/4G | DTU | RS232 | 100x62x24 mm |
CM510-11T | GSM/4G | DTU | RS232 | 100x62x24 mm |
Technical Parameter
CM510-11X | |
Serial Port | Data bit: 8 bits Stop bits: 1, 1.5, 2 Parity bit: no parity, odd parity, even parity Serial port rate: 300bps ~ 115200bps Flow control bit: no flow control 1*RS232 communication interface |
Indicator Light | Online / ACT / Power |
Antenna Interface | Standard SMA female interface, 50 ohm; optional 3M/5M/10M/15M antenna extension cable, meet the different needs of customers |
SIM/UIM | 1.8V/3V/5V standard push-rod SIM card slot, built-in 15KV ESD protection |
Power Interface | Standard 3-pin locomotive power socket |
Powered By | |
Item | Description |
Recommended Power Supply | DC9V/500mA |
Operating Voltage | Wide voltage design, DC 5V to DC32V power supply can directly supply power to the device; and built-in power reverse protection and overvoltage and overcurrent protection |
Power Comsumption | |
Item | Description |
Average Communication Current | 60mA@+12VDC |
Instantaneous Peak Current: | 25mA@+12VDC |
Standby Average Current | 25mA@+12VDC |
Physical Characterisitics | |
Item | Description |
Shell | Metal shell: anti-radiation, anti-interference; shell and system security isolation, lightning protection design; meet the power requirements of safety regulations; protection rating IP41; particularly suitable for harsh industrial control environments. |
Current | 100x62x24 mm(not including the antenna and the fixed parts) |
Weight | 0.41kg |
Other Parameters | |
Item | Description |
Operating Temperature | （-25 ºC ~+65ºC） |
Storage Temperature | （-40~+85ºC） |
Relative Humidity | 95%(No condensation) |

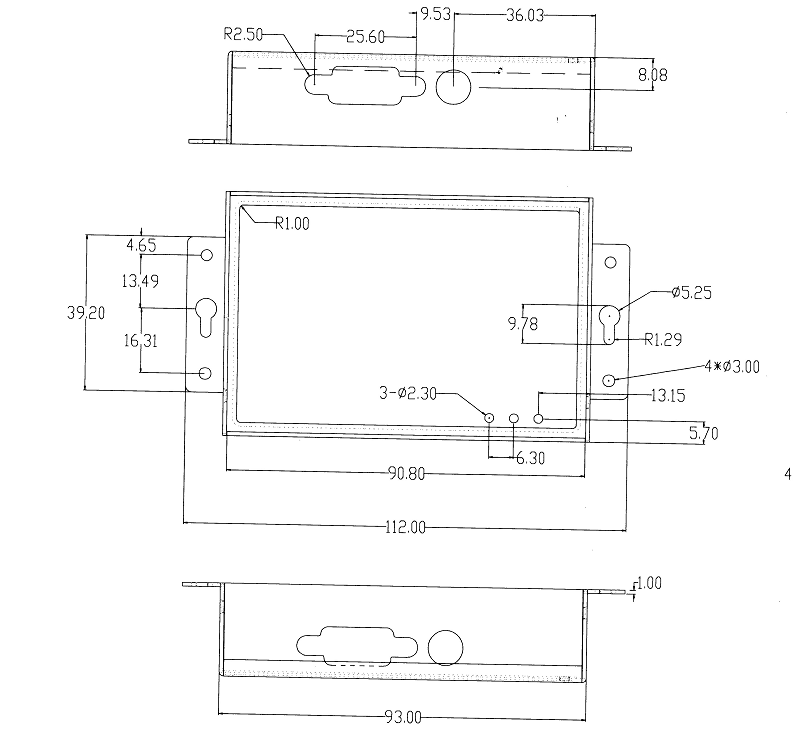

Product Size
Selection Guide
Model NO. | CM510-11F | CM510-11T |
Standards and Frequency Bands | LTE FDD:B1/B3 LTE TDD:B39/B40/B41 TD-SCDMA:B34/B39 WCDMA:B1 CDMA2000 1X/EVDO:B5 GSM/GPRS/EDGE:B3/B8 | LTE FDD:B1/B3 LTE TDD:B39/B40/B41 TD-SCDMA:B34/B39（11T not support） WCDMA:B1（11T not support） CDMA2000 1X/EVDO:B5（11T not support） GSM/GPRS/EDGE:B3/B8 |
The theory of bandwidth |
TD-LTE supports the maximum uplink transmission rate: 50Mbps UL @20MHz BW; | Support the maximum uplink peak rate of 5Mbps, the maximum downlink peak rate of 10Mbps |
Transmit Power | <24dBm | <24dBm |
Receiver Sensitivity | <-109dBm | <-109dBm |
Application Scheme
1. Detection industry applications (pollution, meteorology, water pattern, water conservancy, earthquake, etc.)
2. Network management monitoring industry applications (gas pipe network, oil pipe network, heating network monitoring, water pipe network monitoring, etc.)
3. Oilfield monitoring, street light control, traffic control, vehicle guidance
4. Application cases in the power industry (power distribution monitoring, grid automation, automatic meter reading, grid dispatching)
