CM520-86/89

High speedSafetyStable
CM520-86X/89X series is an industrial-grade wireless router with a metal shell design, 1*LAN/1*WAN, support 2G/3G/4G/5G network for Internet communication.
Sample Now

Product Features



Lightweight and small is just fine

The equipment adopts a high-performance industrial-grade MIPS communication processor, an embedded real-time operating system as a software support platform, the system integrates a full range of communication protocols from the logical link layer to the application layer, and supports VPN (including PPTP+L2TP+MPPE and IPSEC+ GRE), IPTABLE firewall, static and dynamic routing, PPP client, DHCP server and DHCP client, DDNS, firewall, SNAT/DNAT, DMZ host, WEB configuration, support APN/VPDN.




Quick deployment easy to use and easy to set up



Intelligent protection

Three-layer system protection (software protection +CPU built-in watchdog WDT protection


hardware upgrading

High-performance processors are responsive, stable, reliable, and secure to enjoy rapid 5G



Dropped reconnection

Supports automatic dialing when powered on, automatically maintains communication links, and ensures that links are always online.







Reliable and stable

Cm520-56 uses industrial-grade device materials to withstand moisture from high and low temperatures (-35°C to 75°C)

Lightning protection and electromagnetic interference resistance, for communication




product line



Model No.

Network

Item

Interface

Dimension

CM520-86F

4G

4G MINI Industrial cellular router

RJ45, serial port

115*103*25mm

CM520-86T

CAT 1

CAT 1 MINI  Industrial cellular router

RJ45, serial port

115*103*25mm

CM520-86FS

5G

5G MINI  Industrial cellular router

RJ45, serial port

115*103*25mm

CM520-89F

4G

4G MINI Industrial cellular router

RJ45, serial port

115*103*25mm

CM520-89T

CAT 1

CAT 1 MINI  Industrial cellular router

RJ45, serial port

115*103*25mm

CM520-89FS

5G

5G MINI  Industrial cellular router

RJ45, serial port

115*103*25mm





Technical Parameter

CM520-86/89

Ethernet Port

1*10/100 Base-T Ethernet port LAN1-LAN4, Ethernet IEEE 802-3, 802-2; built-in 1.5KV electromagnetic isolation protection

WAN

1*WAN port (Lan0), support PPPOE

Serial Port

1*RS232 serial port
Data bits: 7, 8 bits
Stop bits: 1, 2 bits
Parity: no parity, odd parity, even parity, SPACE and MARK parity
Serial port rate: 110bps ~ 230400bps
Flow control bit: no flow control, RTS/CTS hard flow control or XON/XOFF soft flow control

Indicator Light

POWER、ONLINE

5G/4G

Antenna Interface

Standard SMA female antenna interface, characteristic impedance 50 ohm; 3M/5M/10M/15M antenna extension cable can be selected to meet the needs of different applications

GPS

Antenna Interface

Standard SMA female antenna interface, characteristic impedance 50 ohm;

SIM/UIM

1.8V/3V/5V standard push rod user card interface, built-in 15KV ESD protection

Power Interface

Standard round power socket

Powered By

Item

Description

Recommended Power Supply

DC9V/500mA

Operating Voltage

Wide voltage design, DC 7V to DC32V power supply can directly power the device; also built-in power reverse protection and overvoltage and overcurrent protection

Power Comsumption

Item

Description

Average Communication Current

Average Communication Current: 390mA@+9VDC

Instantaneous Peak Current:

Standby average current: <56mA@+9VDC

Standby Average Current

Standby average current: <56mA@+9VDC

Physical Characterisitics

Item

Description

Shell

Adopt metal shell, anti-radiation, anti-interference; shell and system safety isolation, lightning protection design; in line with the electrical safety requirements; protection level is IP30; particularly suit for harsh industrial control environments.

Current

115*103*25mm (not including the antenna and the fixed parts)

Weight

0.5kg

Other Parameters

Item

Description

Operating Temperature

(-25 ºC ~+65ºC)

Storage Temperature

(-40~+85ºC)

Relative Humidity

95%(No condensation)

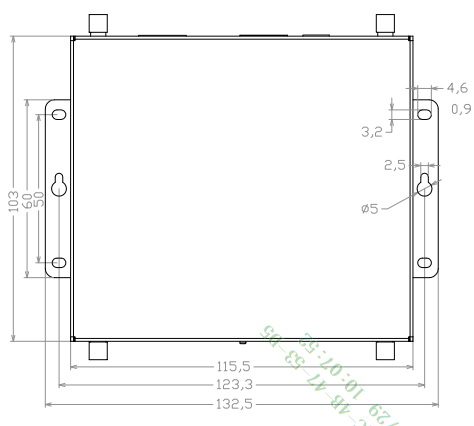

Product Size


Selection Guide

Model NO.

CM520-86F

CM520-86T

CM520-86FS

CM520-89F

CM520-89T

CM520-89FS

Standards and Frequency Bands

LTE TDD:

Band 38/39/40/41
LTE FDD:

Band 1/2/3/4/5/7/13/17/25
TD-SCDMA:

Band 34/39
GSM: Band 2/3/8
UMTS: Band 1/5

LTE-FDD: B1/B3/B5/B8
LTE-TDD: B34/B38/B39/B40/B41
GSM: 900/1800MHz

5G NR:n1/n2/n3/n5/n7/n8/n20/n28/n41/n66/n71/n77/n78/n79
LTE:b1/b2/b3/b4/b5/b7/b8/b12/b13/b14/b17/b20/b25/b26/b28/b29/
b30/b38/b39/b40/b41/b42/b43/b46/b48

LTE TDD:

Band 38/39/40/41
LTE FDD:

Band 1/2/3/4/5/7/13/17/25
TD-SCDMA:

Band 34/39
GSM:

Band 2/3/8
UMTS:

Band 1/5

LTE-FDD: B1/B3/B5/B8
LTE-TDD: B34/B38/B39/B40/B41
GSM: 900/1800MHz

5G NR:n1/n2/n3/n5/n7/n8/n20/n28/n41/n66/n71/n77/n78/n79
LTE:b1/b2/b3/b4/b5/b7/b8/b12/b13/b14/b17/b20/b25/b26/b28/b29/
b30/b38/b39/b40/b41/b42/b43/b46/b48

he theory of bandwidth

LET TDD:

DL61Mbps/UL 18Mbps
LET FDD:

DL100Mbps/UL 50Mbps
DC_HSPA+:

DL42Mbps/UL 5.76Mbps
HSPA+:

DL 28Mb/s(Category 18)
HSdPA:

DL14.4Mb/s(Category 8)
HSUPA+:

DL42Mbps/UL 5.76Mbps
WCDMA CS:

DL 64kbps/UL 64kbps
WCDMA PS:

DL 384kbps/UL 384kbps
EDGE:

DL237Kbps/UL 118Kbps
GSM:

DL171Kbps/UL 171Kbps


LTE:
LTE-FDD:

max 10Mbps (DL)/ max 5Mbps (UL)
LTE-TDD:

max 7.5Mbps (DL)/ max 1Mbps (UL)
GSM:
EDGE:

ax 236.8Kbps (DL)/ max

236.8Kbps (UL)
GPRS:

max85.6Kbps (DL)/ max 85.6Kbps (UL)

5G NR:

DL 3.4Gbps,

UL 350Mbps
LTE Cat20:

DL 2.0Gbps,

UL 150Mbps
HSPA+:

DL 42Mpbs,

 UL
5.76Mbps

LET TDD:

DL61Mbps/UL 18Mbps
LET FDD:

DL100Mbps/UL 50Mbps
DC_HSPA+:

DL42Mbps/UL 5.76Mbps
HSPA+:

DL28Mb/s(Category 18)
HSdPA:

DL14.4Mb/s(Category 8)
HSUPA+:

DL42Mbps/UL 5.76Mbps
WCDMA CS:

DL64kbps/UL 64kbps
WCDMA PS:

DL384kbps/UL 384kbps
EDGE:

DL237Kbps/UL 118Kbps
GSM:

 DL171Kbps/UL 171Kbps


LTE:
LTE-FDD:

max 10Mbps (DL)/ max 5Mbps (UL)
LTE-TDD:

max 7.5Mbps (DL)/ max 1Mbps (UL)
GSM:
EDGE:

max236.8Kbps (DL)/max236.8Kbps (UL)
GPRS:max 85.6Kbps (DL)/ max 85.6Kbps (UL)

5G NR:

DL 3.4Gbps,

UL 350Mbps
LTE Cat20:

DL 2.0Gbps,

UL 150Mbps
HSPA+:

DL 42Mpbs,

 UL
5.76Mbps

Transmit Power

<24dBm

<24dBm

<24dBm

<24dBm

<24dBm

<24dBm

Receiver Sensitivity

<-109dBm

<-109dBm

<-97dBm

<-109dBm

<-109dBm

<-97dBm


Application Scheme

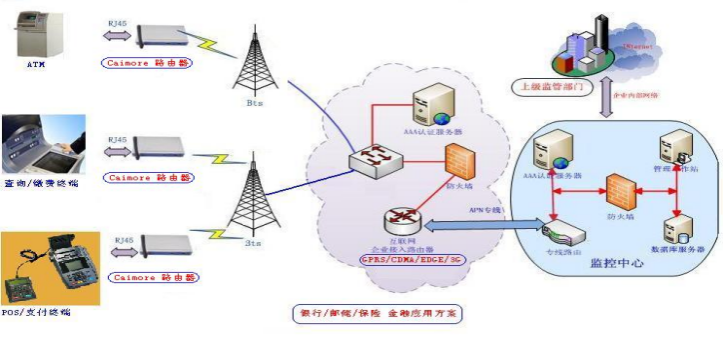

Internet applications for businesses and homes


Application in financial transaction or traffic control industry

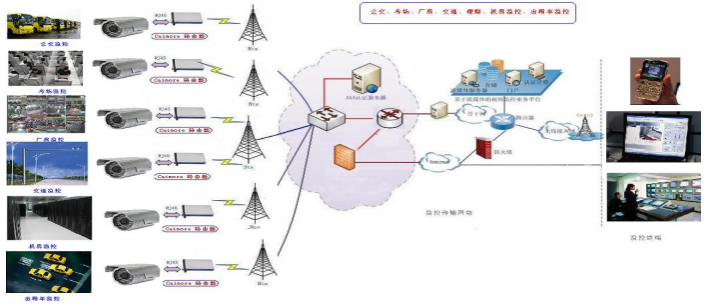

Video surveillance or video transmission
