CM530-8X

Real time Stable System
It integrates video encryption, video acquisition, 3G/4G wireless communication technology, voice and intercom, advertisement playing, alarm, GPS positioning, snapshot, cloud platform control, video and video blackout protection, hard disk storage, TF car
Sample Now

Product Features



Model No.

Network

Item

Interface

Dimension

CM530-81F

4G LTE

Industrial Video Surveillance

Serial port, Ethernet port, audio and video interface, IO port, TF card interface

205x157x33mm

CM530-82F

4G LTE+GPS

Industrial Video Surveillance

Serial port, Ethernet port, audio and video interface, IO port, TF card interface

205x157x33mm

1. Support 4G wireless communication and Ethernet communication;

2. Support 1-4 channels of real-time video and recording, with high-definition resolutions such as 1080P (1920*1080) and 720P (1280*720);

3. Support conventional recording, motion detection recording, planned recording, manual recording, alarm recording, and supporting recording track playback;

4. Support video power-off protection;

5. Support video storage in hard disk or TF card, TF card supports up to 128G, hard disk supports up to 2T (2000G), and supports automatic overwriting of video files;

6. Support FTP method to download video files;

7. Support GPS positioning function;

8. Support voice transmission, voice intercom function;

9. Support PTZ control, control movement of PZT up, down, left and right, zoom in, zoom out, focus, iris adjustment, PTZ speed adjustment;

10. Support web pages, TV walls, mobile phones (Android and Apple) and local monitoring stations to browse videos;

11. Support 1-channel and 4-channel VGA and HDMI output;

12. Support the detection of environmental temperature and humidity;

13. Support motion detection alarm and IO alarm function;

14. Support I/O port, support 7 channels with photoelectric isolation high/low level trigger input, support 2 channels high/low level trigger output; support 1 channel switch/dry node output;

15. Support manual capture and automatic capture. Automatic capture can also be divided into periodic capture, timing capture and motion detection capture;

16. Support DHCP, routing and forwarding, IPTABLES firewall, VPN connection, NAT function, DMZ host and other routing functions;

17. Support 1 RS232 communication, 1 RS485 interface can be used as DTU function (to achieve TCP/UDP transparent transmission);

18. Support remote configuration, remote upgrade, remote centralized management;

Technical Parameter

CM530-8X

Video Input and Output

4 video input interfaces, 1 VGA and 1 HDMI output interface

Audio Input and Output

4 audio input interface, 1 audio output interface

I/O Port

Support 7 - channel photoelectric isolation high/low level trigger input;
Support 2 - channel photoelectric isolation high/low level trigger output;
Support 1 - channel switch/dry node output

TF card

1 slot. Up to 128G

Hard Disk

1 SATA hard disk. Up to 2T

Ethernet Port

5 100M/1000M adaptive network interfaces

Serial Port

1*RS485 interface, 3*RS232 interfaces

Data bits: 5, 6, 7, 8 bits

Stop bits: 1, 2 bits

Check Digit: No Check

Serial port rate: 110~115200bps

Flow control bit: no flow control

Indicator Light

Power indicator, 3G/4G indicator, GPS indicator, LINK/ACT indicator, video indicator

Antenna Interface

2*3G/4G antenna interfaces, 1*GPS antenna interface

SIM/UIM

1.8V/3V/5V standard putter user card interface, built-in 15KV ESD protection

Power Interface

Standard 3-core locomotive power outlet

Powered By

Item

Description

Recommended Power Supply

Wide voltage design, DC 6V to DC 36V power supply can directly supply power to the device, and built-in power reverse protection and overvoltage and overcurrent protection

Operating Voltage

DC12V/2A

Power Comsumption

Item

Description

Average Communication Current

550mA@+12VDC

Instantaneous Peak Current:

1.5A@+12VDC

Standby Average Current

< 65mA@+12VDC

Physical Characterisitics

Item

Description

Shell

Metal shell: metal case, anti-radiation, anti-interference; shell and system security isolation, lightning protection design; meet the power requirements of safety regulations; protection rating IP41; particularly suit for harsh industrial control environments.

Current

205x157x33mm(Antenna and fixer are not included)

Weight

0.98kg

Other Parameters

Item

Description

Operating Temperature

-25ºC ~ +70ºC

Extended
Operating Temperature

-30ºC ~ +75ºC

Storage Temperature

-40ºC ~ +85ºC

Relative Humidity

95%(No condensation)

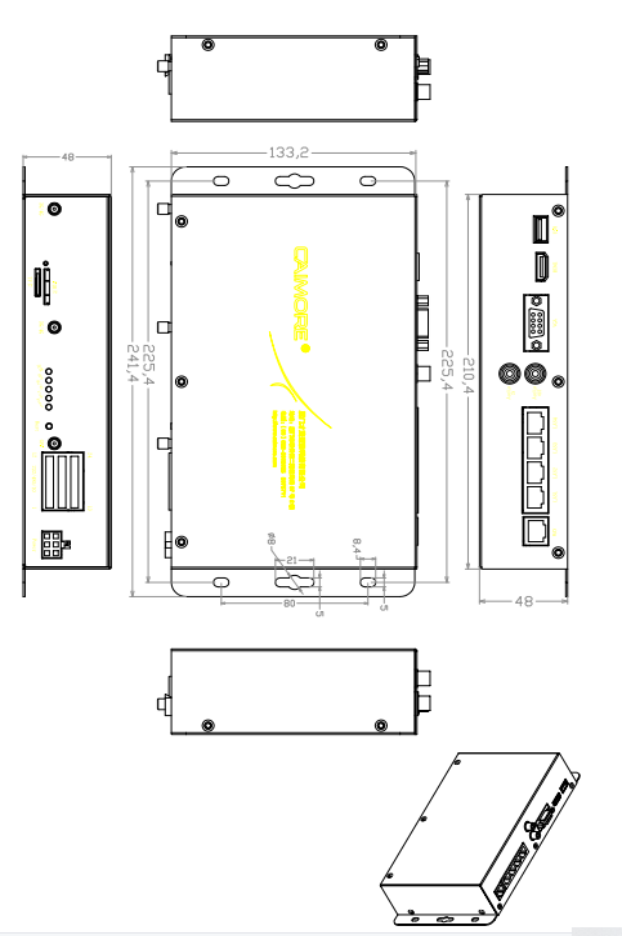

Product Size



Selection Guide


Standards and Frequency Bands

LTE TDD: 2600/2300MHz

UMTS: 2100/900MHz

GSM: 850/900/1800/1900MHz

RxDiv Band:UMTS 2100/900MHz

LTE FDD: 2600/2100/1800/DD800MHz

UMTS: 2100/900MHz

RxDiv Band:UMTS 2100/900MHz

The theory of bandwidth

LET TDD:DL 68Mbps/UL 17Mbps

DC_HSPA+:DL 42Mb/s(Category 24)

HSPA+:DL 28Mb/s(Category 18)

HSdPA:DL 14.4Mb/s(Category 8)

HSUPA+:DL 5.76Mb/s(Category 6)

WCDMA CS:UL 64kbps/DL 64kbps

WCDMA PS:UL384kbps/DL384kbps

LET FDD:DL 100Mbps/UL 50Mbps

DC_HSPA+:DL 42Mb/s(Category 24)

HSPA+:DL 28Mb/s(Category 18)

HSdPA:DL 14.4Mb/s(Category 8)

HSUPA+:DL 5.76Mb/s(Category 6)

WCDMA CS:UL 64kbps/DL 64kbps

WCDMA PS:UL384kbps/DL384kbps

Coding Scheme

LTE/UMTS/HSPA+/HSDPA/HSUPA/WCDMA/EDGE/GSM


The theory of bandwidth

LTE:23 dBm WCDMA/HSDPA:24dBm


Receiver Sensitivity

<-109dBm


GPS

Adopt industrial-grade GPS wireless module


Wireless module

GPS receiver, 48 channels, L1 frequency, 1575.42 MHz chip speed, C/A code 1.023 MHz chip speed;


Receiver type

Support SBAS: WAAS, EGNOS, MSAS, compatible with GALILEO


Positioning accuracy

Positioning: 2.5m CEP SBAS: 2.0m CEP


Speed accuracy

Speed accuracy < 0.01 m/s (high speed) < 0.01° (heading), ( 50 % @ 30 m/s)


Capture time Cold start

35S; Auxiliary start: <3 seconds; Hot start: 1 second


Output information

NMEA, UBX binary: GGA GSA GSV RMC VTG GLL


Navigation data update rat

1Hz


Sensitivity

Tracking: -163dBm; Navigation: -160dBm; Acquiring: -147dBm


Operating Limits

Speed: 500m/s Height: 50000m




Application Scheme
