CM580-6BFI-10.1

10.1inchUltra Low Power High performance Embedded Industrial PC
★Super powerful quad-core Cortex-A17, frequency up to 1.6GHz;

★GPU adopts Mali-T764 GPU, which supports TE, ASTC, AFBC memory compression technology;

★Support 4K VP9 and 4K 10bits H265/H264 video decoding, up to 60fps;
Sample Now

Product Features


CM580-6BFI-10.1 is a low-power, high-performance embedded All-in-One Industrial PC, independently developed by Caimore. It adopts Rockchip RK3288 series CPU. The ARM-based processor combined with the Android operating system provides a very broad and free App operating environment; excellent computing and graphics performance, especially suitable for harsh or demanding industrial occasions and public space applications, It supports wide temperature operation, and expands a rich peripheral function interface.



Super powerful quad-core Cortex-A17 frequency up to 1.6GHz

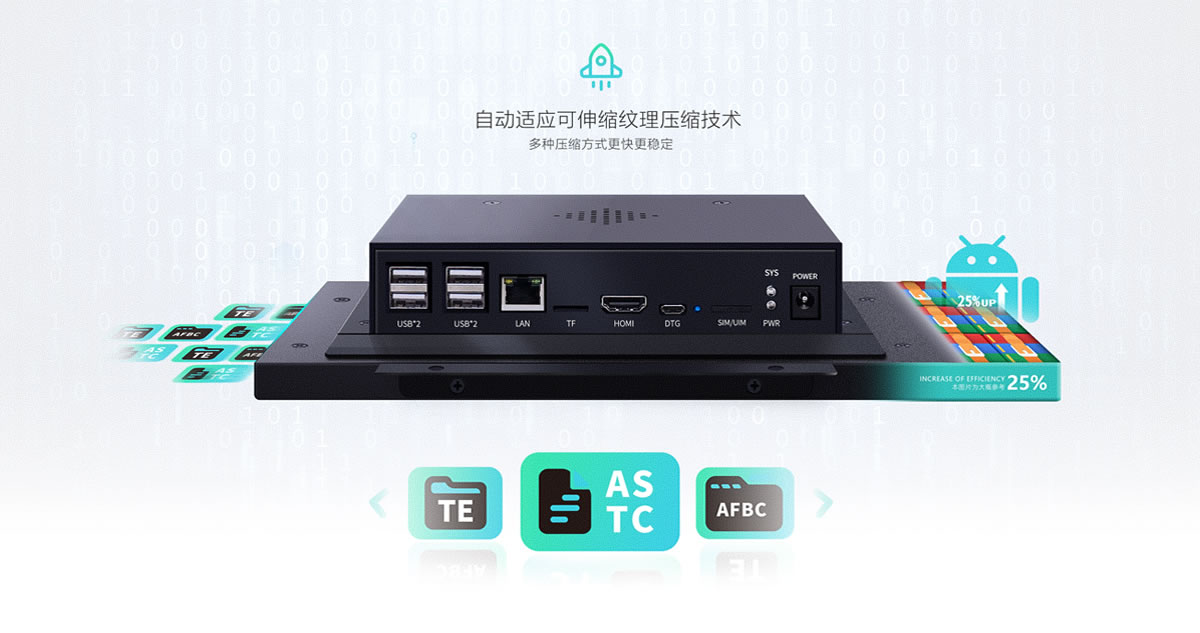

GPU adopts Mali-T764 GPU which supports TE, ASTC, AFBC memory compression technology




A number of decodingsuitable for harsh industrial environment applications.

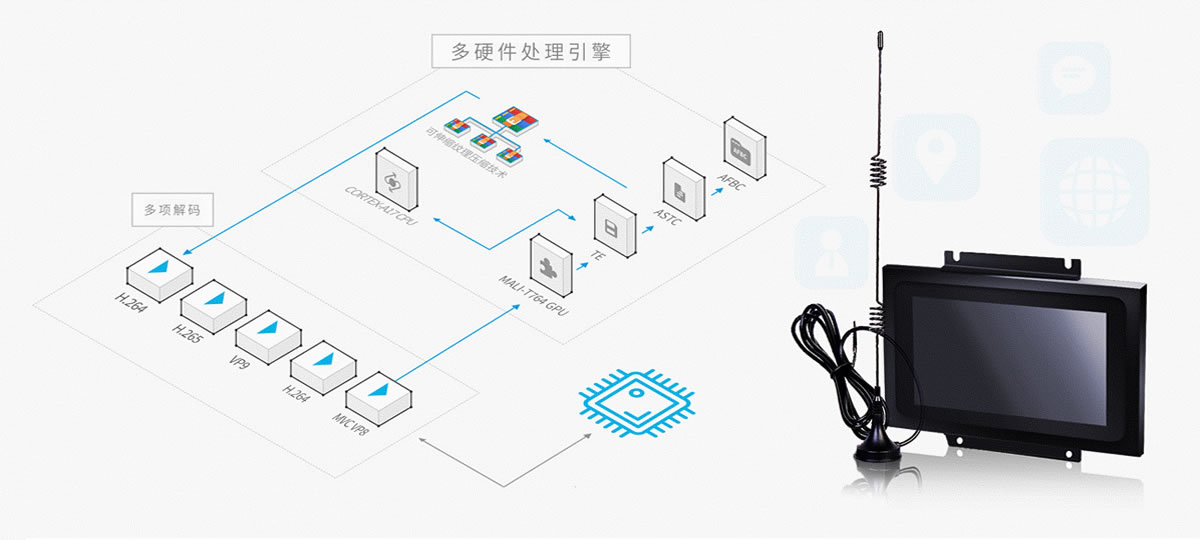

Built-in multiple high-performance hardware processing engines that support video decoding in multiple formats, such as: H.264/H.265/VP9 of 4K*2K@60fps, also support H.264/MVC/ VP8 of 1080P@30fps and high-quality JPEG codec and image pre- and post-processor;

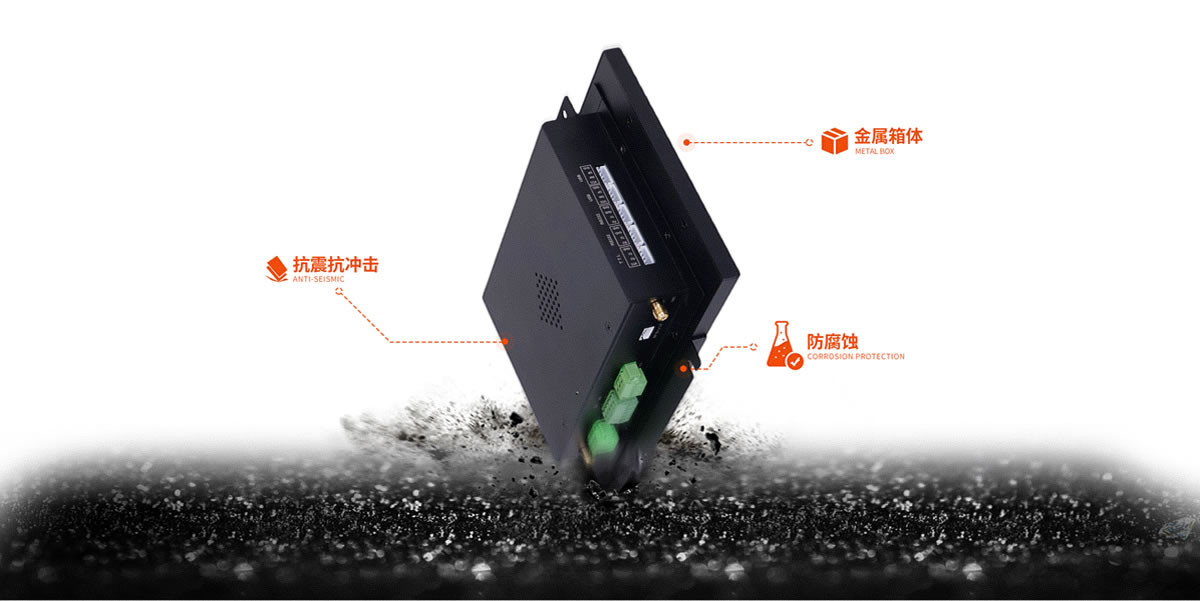

The hardware design With high seismic resistance, dustproof, low heat, suitable for harsh industrial environment

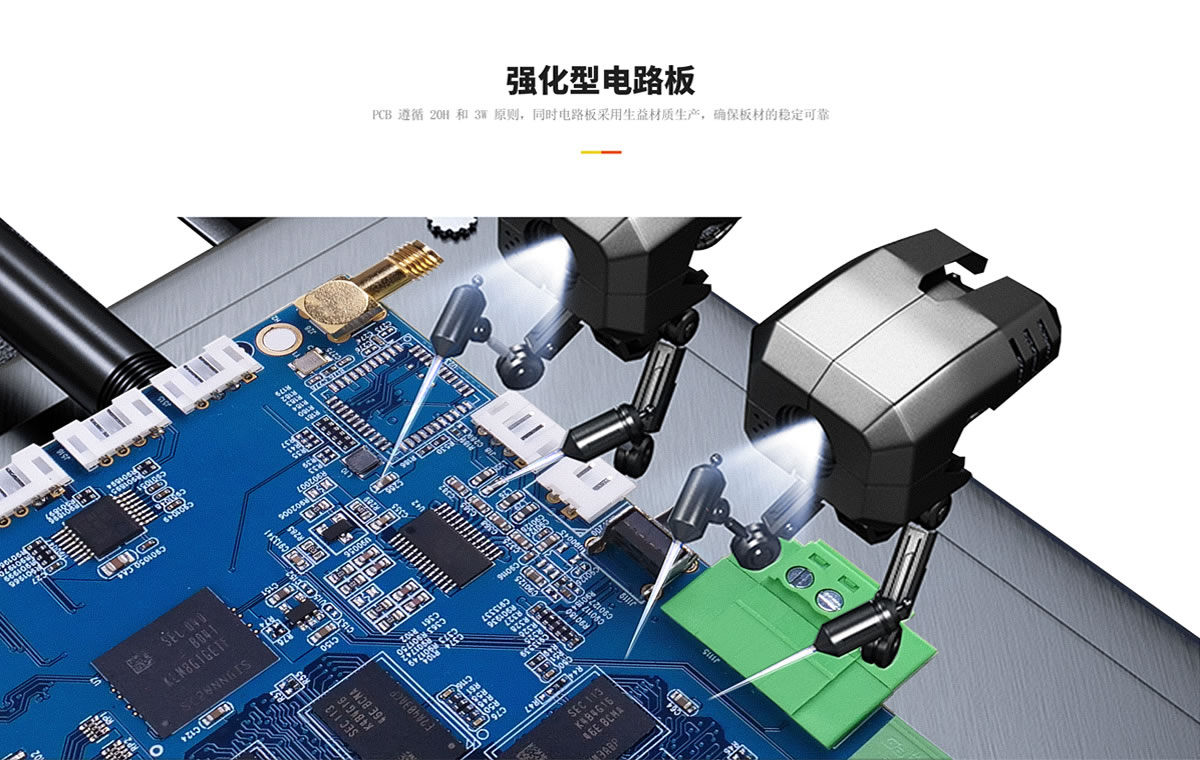

Reinforced circuit board excellent computing and graphics performance, especially suitable for harsh or demanding industrial occasions and public space applications, It supports wide temperature operation, and expands a rich peripheral function interface.



Technical Parameter


CM580-6BFI-10.1

Serial Port

4-channel RS232,1 channel RS485

Indicator Light

1 channel power indicator , 1 channel system status indicator

Antenna Interface

1 channnel wifi antenna,1 channel 4G antenna

SIM/UIM

1 channel Micro SIM

Power Interface

12V DC, 4A, with lightning protection function, overvoltage and overcurrent protection, anti-reverse connection protection

Powered By

Item

Description

Recommended Power Supply

4A

Operating Voltage

12V

Physical Characterisitics

Item

Description

Shell

metal shell

Dimension

260mm*178mm*44.4mm

Other Parameters

Item

Description

Operating Temperature

-20 ºC ~+70ºC

Storage Temperature

-40 ºC ~+80ºC

Relative Humidity

95% (No condensation)


Product Size


Selection Guide

Model No.

Network

Item

Interface

Dimension

CM580-6BFI-10.1

4G LTE

All-in-One  Industrial PC

LVDS, HDMI (screen interface), GPIO interface, 232 interface, 485 interface, RJ45,Reset Key, Return Key,  USB

260mm*178mm*44.4mm



Application Scheme

Industrial field control acquisition


Financial POS machine, vehicle control terminal


Intelligent terminal in unattended environment


Security/surveillance/police and IoT fields


Human-computer interaction,intelligent retail
