CM510-14X
Product Features
Router with watchdog protection, 24 hours of downtime, stable and high-speed operation of the equipment
Encryption transmission, high computing speed, low resource loss, high security
Support remote upgrade, automatic offline restart no need to go to the device site remote management, saving time and effort
Model No. | Network | Item | Interface | Dimension |
CM510-14F | 2G/3G/4G | DTU | Support RS232/485/TTTL | 100x62x24 mm |
CM510-14T | GSM/4G | DTU | Support RS232/485/TTTL | 100x62x24 mm |
Xiamen Caimore 4G DTU CM510-14F/T is an industrial-grade wireless data transmission equipment that supports different oversea networks. It supports: GPRS/CDMA/WCDMA/TD-SCDMA/EDGE/FDD-LTE/TDD-LTE;
The device provides TCP/UDP transparent wireless long-distance data transmission.
The device supports RS232/485/RS422/TTTL, the device can be directly connected to the above-mentioned interface devices of the customers, transparently transmit the data of the customer's PLC equipment and industrial control equipment to the customer's data center, and realize the functions of data collection, data transmission, and equipment control of the client equipment.
The product adopts ARM9 industrial-grade high-performance embedded processor, real-time operating system as the software support platform, large memory, embedded TCP/IP protocol stack with independent intellectual property rights; the device supports dual data center backup, and multiple data centers synchronous reception Data and other functions; the equipment provides online maintenance technology to keep the data terminal permanently online, and the data link is unblocked at any time, realizing high-speed, stable and reliable TCP/UDP transparent data transmission.
For customers who are more sensitive to network traffic and product power consumption, this product supports the functions of voice, SMS, data triggering online and timeout automatic disconnection, reducing traffic, reducing product power consumption, and realizing low power consumption.
Adopt ARM7 industrial-grade processor and intelligent three-level protection, passed the 3000V electric shock test, possess patented technology, stable and reliable product performance.
This product has been widely used in power centralized meter reading, water meter centralized meter reading, heat network monitoring, gas monitoring, water conservancy monitoring, environmental protection testing, meteorological testing, earthquake monitoring, traffic control and other industries.
Technical Parameter
CM510-14X | |
Serial Port | Data bits: 7, 8 bits Stop bits: 1, 2 bits Parity: no parity, odd parity, even parity, SPACE and MARK parity Serial port rate: 110bps ~ 115200bps Flow control bit: no flow control, RTS/CTS hard flow control or XON/XOFF soft flow control |
Indicator Light | Online / ACT / Power |
Antenna Interface | Standard SMA female interface, 50 ohm; optional 3M/5M/10M/15M antenna extension cable, meet the different needs of customers |
SIM/UIM | 1.8V/3V/5V standard push-rod SIM card slot, built-in 15KV ESD protection |
Power Interface | Standard 3-pin locomotive power socket |
Powered By | |
Item | Description |
Recommended Power Supply | DC9V/1330mA |
Operating Voltage | Wide voltage design, DC 7V to DC32V power supply can directly supply power to the device; and built-in power reverse protection and overvoltage and overcurrent protection |
Power Comsumption | |
Item | Description |
Average Communication Current | 60mA@+12VDC |
Instantaneous Peak Current: | 25mA@+12VDC |
Standby Average Current | 25mA@+12VDC |
Physical Characterisitics | |
Item | Description |
Shell | Metal shell: anti-radiation, anti-interference; shell and system security isolation, lightning protection design; meet the power requirements of safety regulations; protection rating IP41; particularly suitable for harsh industrial control environments. |
Current | 100x62x24 mm(not including the antenna and the fixed parts) |
Weight | 0.41kg |
Other Parameters | |
Item | Description |
Operating Temperature | （-25 ºC ~+65ºC） |
Storage Temperature | （-40~+85ºC） |
Relative Humidity | 95%(No condensation) |

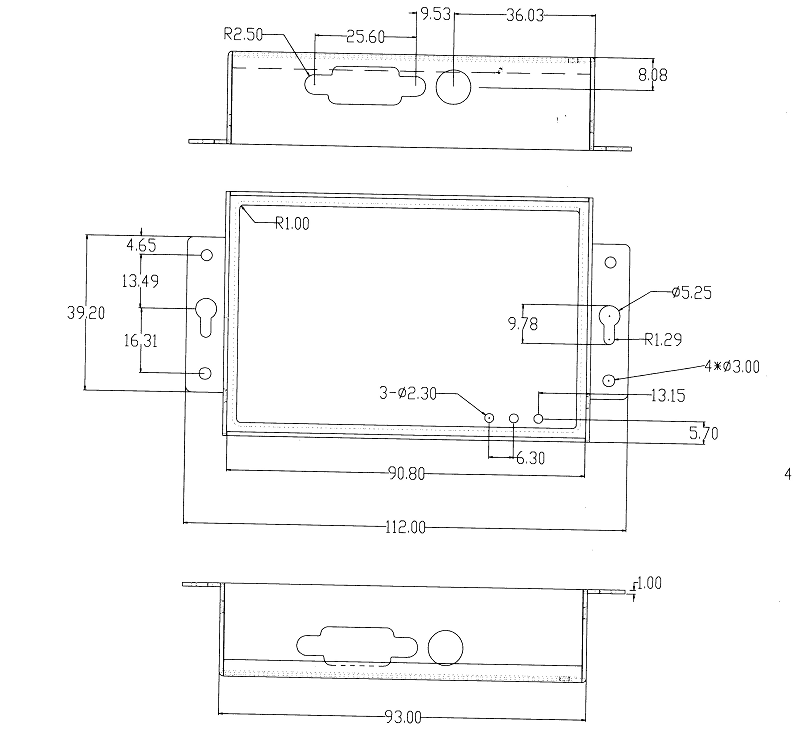

Product Size
Selection Guide
Model NO. | CM510-14F | CM510-14T |
Standards and Frequency Bands | LTE FDD:B1/B3 LTE TDD:B39/B40/B41 TD-SCDMA:B34/B39 WCDMA:B1 CDMA2000 1X/EVDO:B5 GSM/GPRS/EDGE:B3/B8 | LTE FDD:B1/B3 LTE TDD:B39/B40/B41 TD-SCDMA:B34/B39（14T not support） WCDMA:B1（14T not support） CDMA2000 1X/EVDO:B5（14T not support） GSM/GPRS/EDGE:B3/B8 |
The theory of bandwidth |
TD-LTE supports the maximum uplink transmission rate: 50Mbps UL @21MHz BW; | Support the maximum uplink peak rate of 5Mbps, the maximum downlink peak rate of 11Mbps |
Transmit Power | <24dBm | <24dBm |
Receiver Sensitivity | <-109dBm | <-109dBm |
Application Scheme
1. Detection industry applications (pollution, meteorology, water pattern, water conservancy, earthquake, etc.)
2. Network management monitoring industry applications (gas pipe network, oil pipe network, heating network monitoring, water pipe network monitoring, etc.)
3. Oilfield monitoring, street light control, traffic control, vehicle guidance
4. Application cases in the power industry (power distribution monitoring, grid automation, automatic meter reading, grid dispatching)
