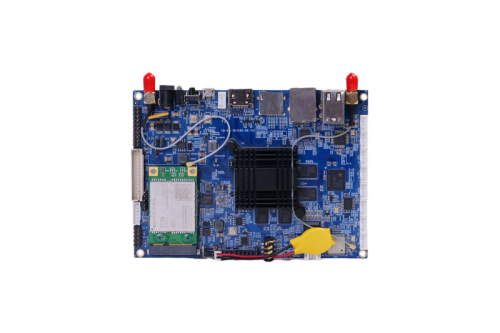

CM580-6BF
Product Features
CM580-6BF is a low-power, high-performance embedded All-in-One Industrial PC, independently developed by Caimore. It adopts Rockchip RK3288 series CPU. The ARM-based processor combined with the Android operating system provides a very broad and free App operating environment; excellent computing and graphics performance, especially suitable for harsh or demanding industrial occasions and public space applications, It supports wide temperature operation, and expands a rich peripheral function interface.
High seismic resistance, dustproof, low heat and other characteristics, the application of harsh industrial environment
The wireless module of the 4G network with full netcom must use pcie interfaces
The intelligent terminal in an unattended environment adopts a metal shell
Shielding electromagnetic interference, system protection level IP41; Antenna with lightning protection design
As a more efficient HD compression format, codec gives full play to its accumulated advantages in the field of audio and video in video support, and truly supports 4K video output and playback
The hardware design With high seismic resistance, dustproof, low heat, suitable for harsh industrial environment
Model No. | Network | Item | Interface | Dimension |
CM580-6BF | 4G LTE | Industrial motherboard | LVDS, HDMI (screen interface), GPIO interface, 232 interface, 485 interface, RJ45, Reset Key, Return Key, USB | 146mm*105mm |
CM580-6BF is a low-power, high-performance embedded Industrial motherboard , independently developed by Caimore . It adopts Rockchip RK3288 series CPU. The ARM-based processor combined with the Android operating system provides a very broad and free App operating environment; excellent computing and graphics performance, especially suitable for harsh or demanding industrial occasions and public space applications, It supports wide temperature operation, and expands a rich peripheral function interface.
Technical Parameter
CM580-6BF | |
Serial Port | 4-channel RS232,1 channel RS485 |
Indicator Light | 1 channel power indicator , 1 channel system status indicator |
Antenna Interface | 1 channnel wifi antenna，1 channel 4G antenna |
SIM/UIM | 1 channel Micro SIM |
Power Interface | 12V DC, 4A, with lightning protection function, overvoltage and overcurrent protection, anti-reverse connection protection |
Powered By | |
Item | Description |
Recommended Power Supply | 4A |
Operating Voltage | 12V |
Physical Characterisitics | |
Item | Description |
Shell | metal shell |
Dimension | 260mm*178mm*44.4mm |
Other Parameters | |
Item | Description |
Operating Temperature | -20 ºC ~+70ºC |
Storage Temperature | -40 ºC ~+80ºC |
Relative Humidity | 95% (No condensation) |

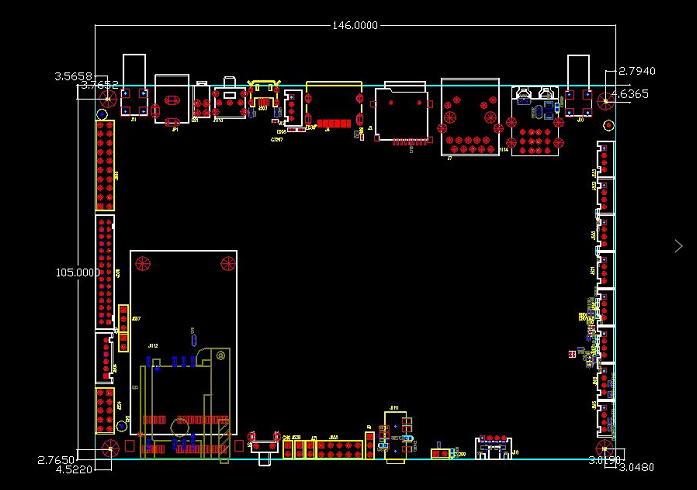

Product Size
Selection Guide
Application Scheme
Industrial field control acquisition
Financial POS machine, vehicle control terminal
Intelligent terminal in unattended environment
Security/surveillance/police and IoT fields
Human-computer interaction,intelligent retail
